Arrow dB-Killer for Indy Race EVO silencer ø32mm for Yamaha MT-09 24-25

WARNING: for the product code 11020DB that you are viewing, it may also be necessary to purchase other components to be able to assemble it correctly.

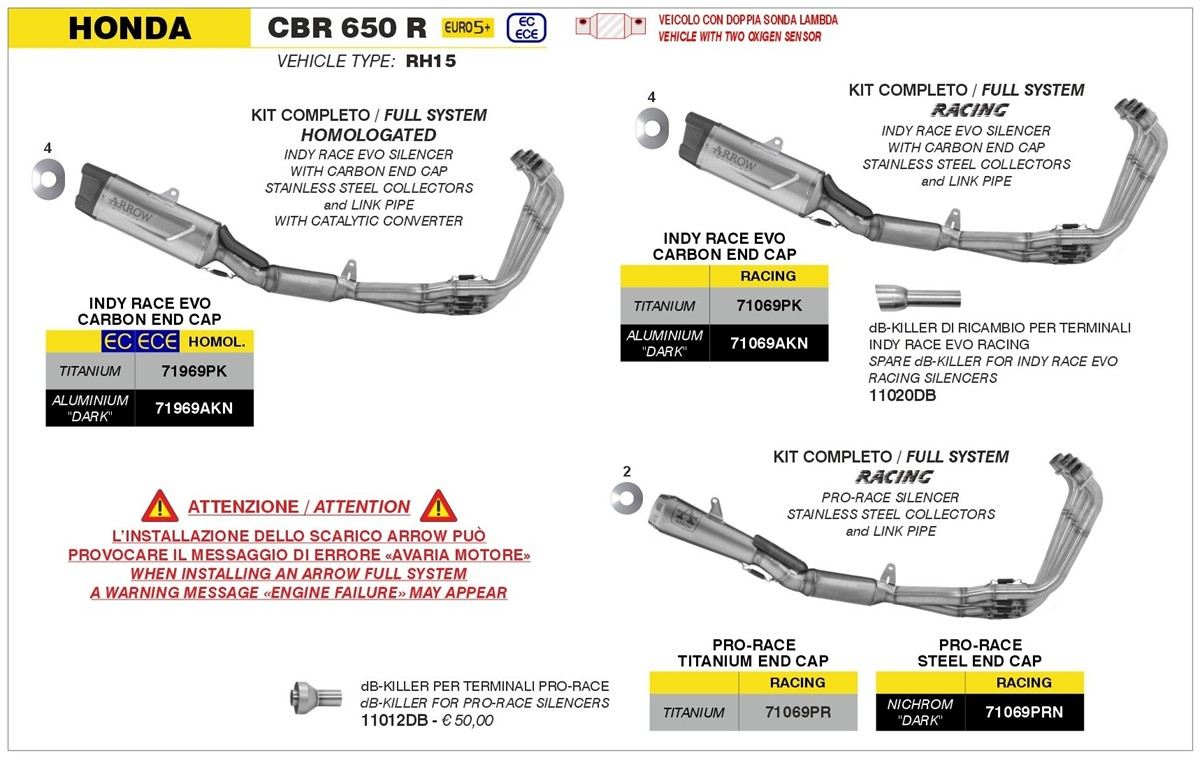

ASSEMBLY DIAGRAM: in the photos, refer to the ASSEMBLY DIAGRAM of your motorcycle (indicated at the top left: Model - Euro - Vehicle Type) and the product code 11020DB.
The ASSEMBLY DIAGRAM helps you understand if you also need to purchase other parts for correct assembly, in fact it shows how the various parts connect/assemble together with a continuous line or a dotted line.

SOLID LINE: If in the assembly diagram there is a continuous line that connects two or more parts, it means that to assemble the product you must also purchase the other parts connected by the continuous line. Therefore, you cannot complete the assembly without purchasing all the parts connected by the continuous line.

DOTTED LINE: If instead in the assembly diagram there is a dotted line, it means that the parts connected by this line are optional. You can decide whether to purchase them or not, based on your needs or preferences. They are not essential to assemble the product.

DANGER SYMBOLS OR OTHER SYMBOLS: When a symbol is present, such as the warning triangle, you must always take into account the relative note to verify the compatibility between the various parts involved.

If you are unsure or have any doubts, you can click on the ASK A QUESTION ABOUT THIS PRODUCT button, to request clarification.

Db Killer: No
Lambda sensor plug: No
CO sensor plug: No


honda cb 650 r vehicle type: RH16
honda cbr 650 r vehicle type: RH15
yamaha mt-09 / mt-09 sp 900 vehicle type: RN89 - RN91
yamaha mt-09 / mt-09 sp 900 vehicle type: RN89 - RN91
yamaha yzf r9 900 vehicle type: RNA
